Product Description

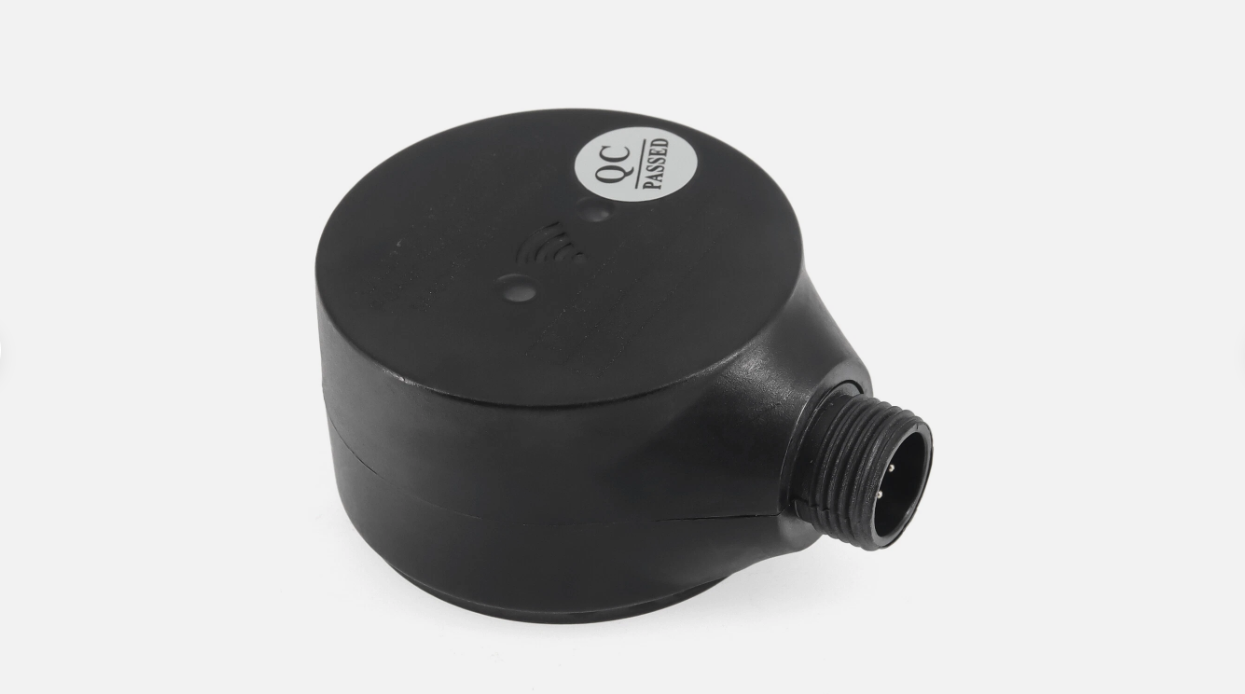

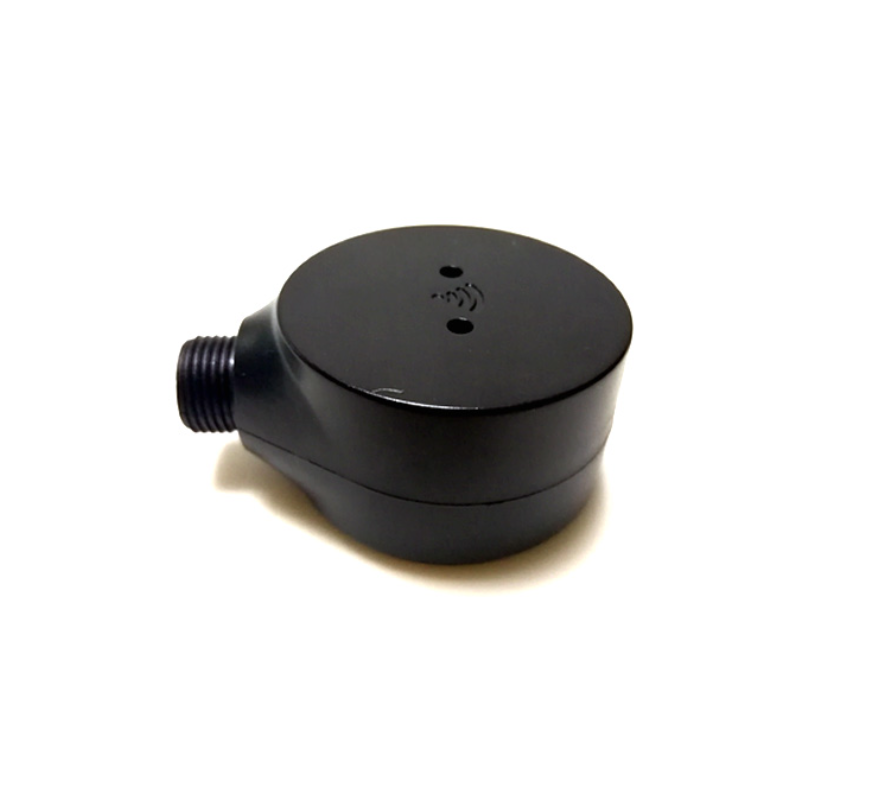

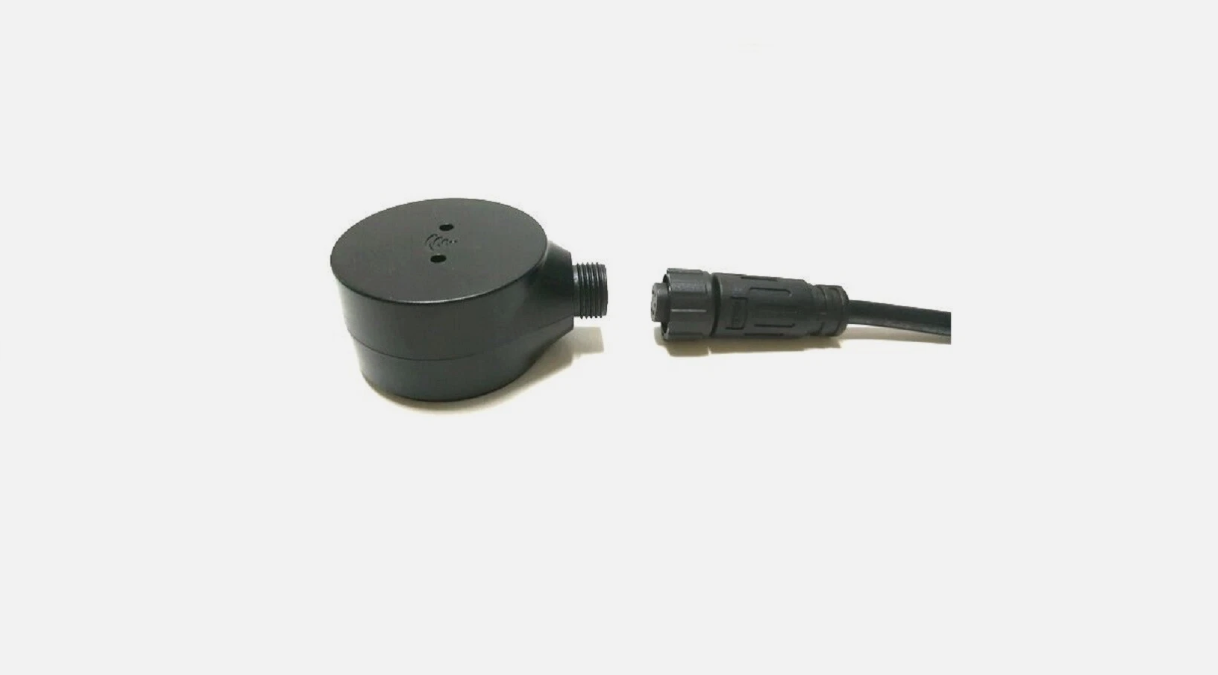

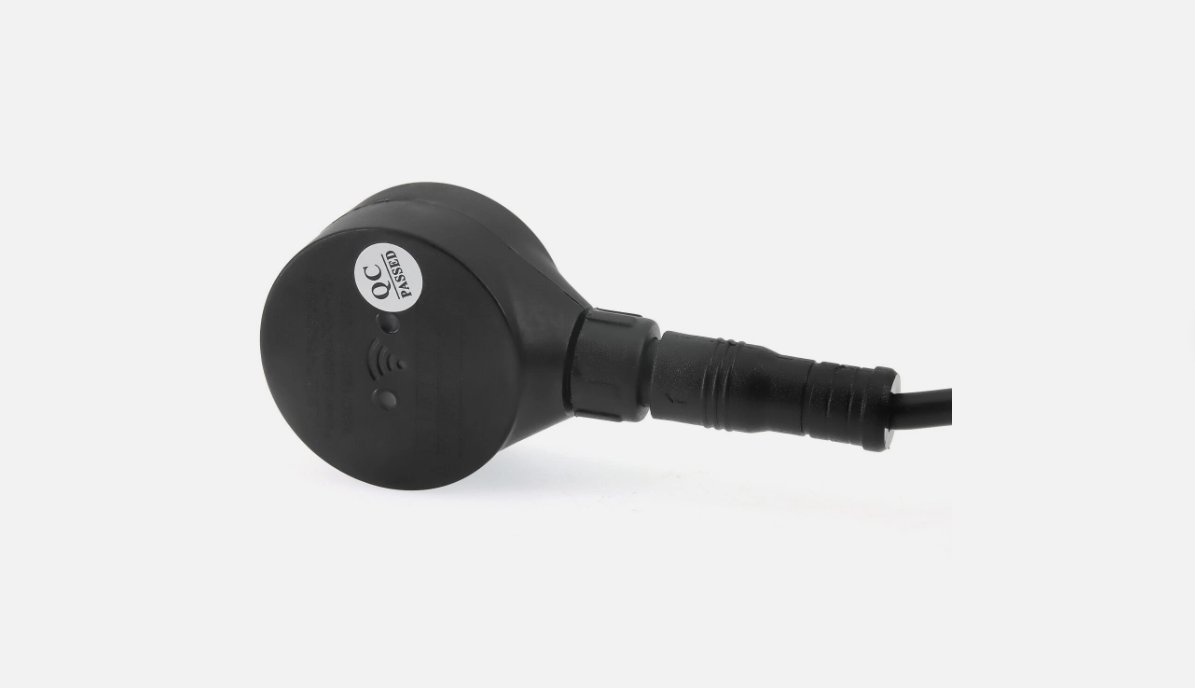

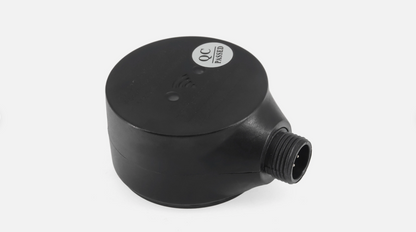

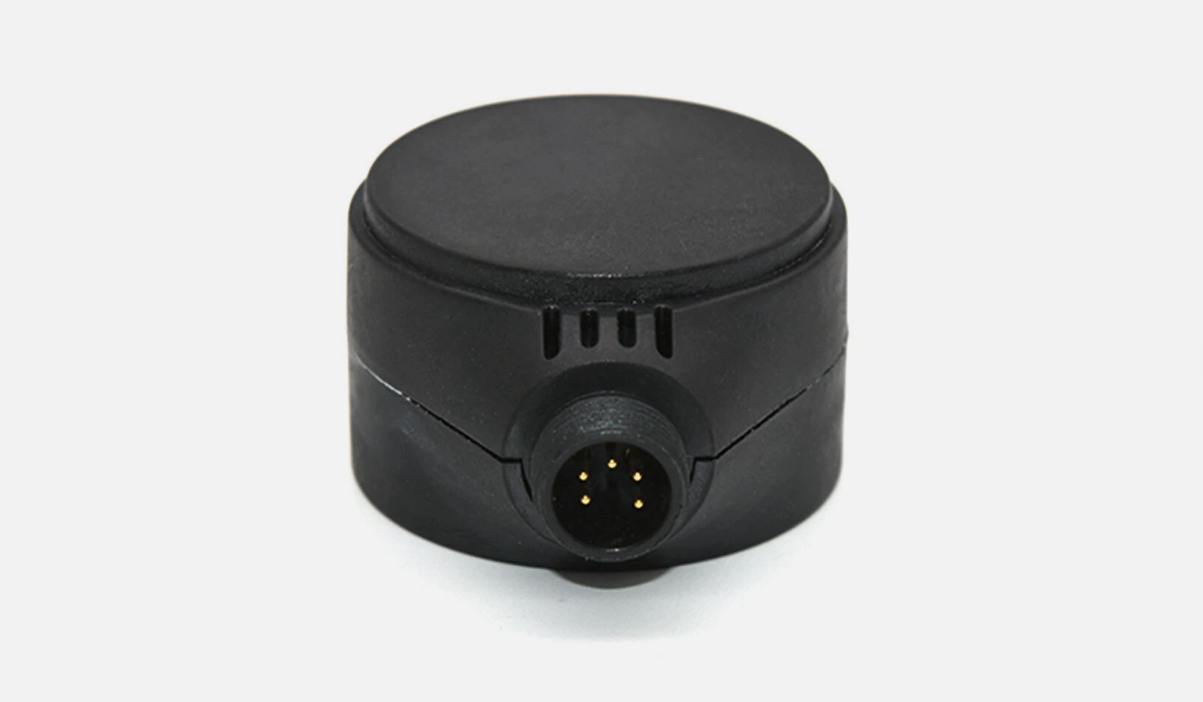

Ultrasonic Fuel Level Sensor All in One Design
Model: UL212
Application: M2M Devices, GPS Tracker, Mobile DVR
Features :
No Drilling Holes in Tank, Easy Installation
Support Any Liquid: Diesel, Gasoline, Water, etc.
Support Any Material Tank: Metal/Aluminum/Stainless Steel /Fiber/Plastic
l Resolution: 0.1mm
l Accuracy: 99.5%
l Maximum Measuring Range: 100cm (UL212), 250cm (UL212-E)
l Lowest Detection Hight(Blind Area): 3cm
l Maximum Tank Thickness: 8~12mm
l Output Interface: BLE Bluetooth 5.0 +RS232(Default)/RS485+Analog(0~5V)

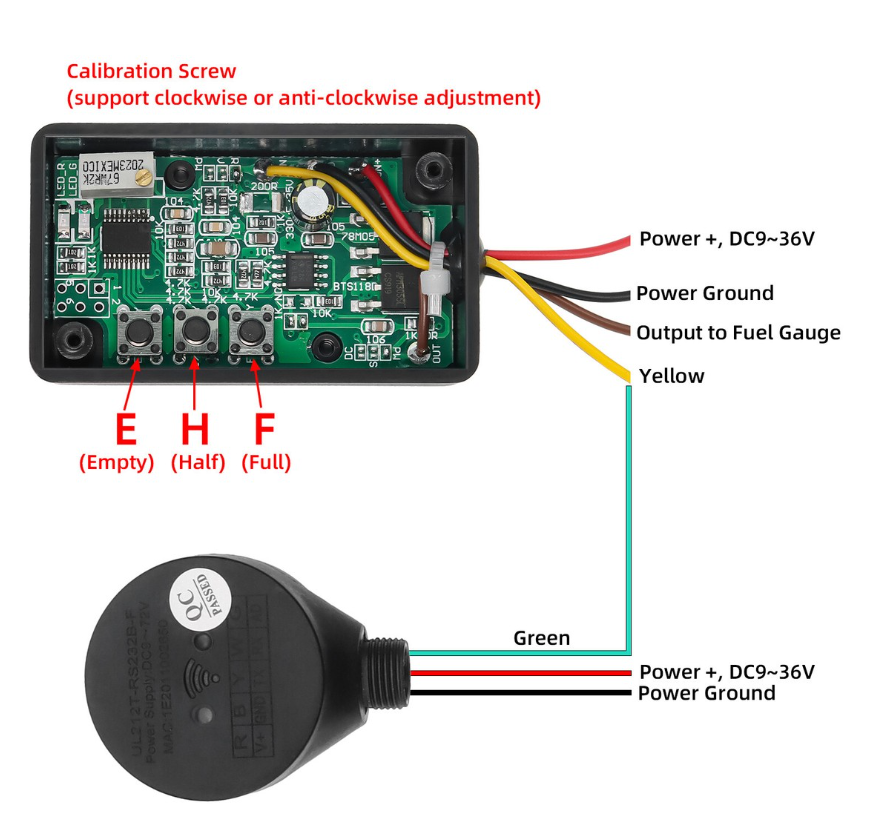

l Mobile App configuration &Calibration
l Built-in AI Algorithm to filter abnormal signal
l Fuel Theft Alarm I/O Output
l IP68 waterproof
l Hardware Partners: Teltonika, GEOTab, Calamp, Wireless Link, Queclink, Gosafe, Jimi Concox, Meitrack, FifoTrack, BSJ, Streamax
|
Part No. |
Maximum Range |
Blind Area |
Beam Range |
BLE Bluetooth |
Signal Output |
Voltage |
|
|
UL212 |
100 cm |
3cm |
11° |
Yes |
RS232/RS485, Analogue (0~5V) |
9~36V |
|
|
UL212-E |
250 cm |
3cm |
11° |
Yes |
RS232/RS485, Analogue (0~5V) |
9~36V |
|
Specification:
|
Parameter |
Description |
|
Power Supply |
9~36V DC |
|
Max Power Consumption |
0.7W @12V DC |
|
Measuring Range |
3~250cm |
|
Resolution |
0.1mm |
|
Accuracy |
99.5% （0# Diesel ,25℃） |
|
Maximum Tank Thickness |
<12mm |
|
Interface |
RS232（default）/RS485 Analog 0~5V BLE Bluetooth5.0 CAN (optional) |
|
Serial Communication |
9600 baud rate(customized)，data bit 8, stop bit1, no flow control，no verification bit |
|
Support Protocols |
Teltonika, GEOTAB, BCE, Ruptela, Ominicomm LLS, CR, Calamp, Atrack, Fifotrack, Queclink, Meitrack, Concox Jimi, Queclink, Xirgo,Wireless Link |
|

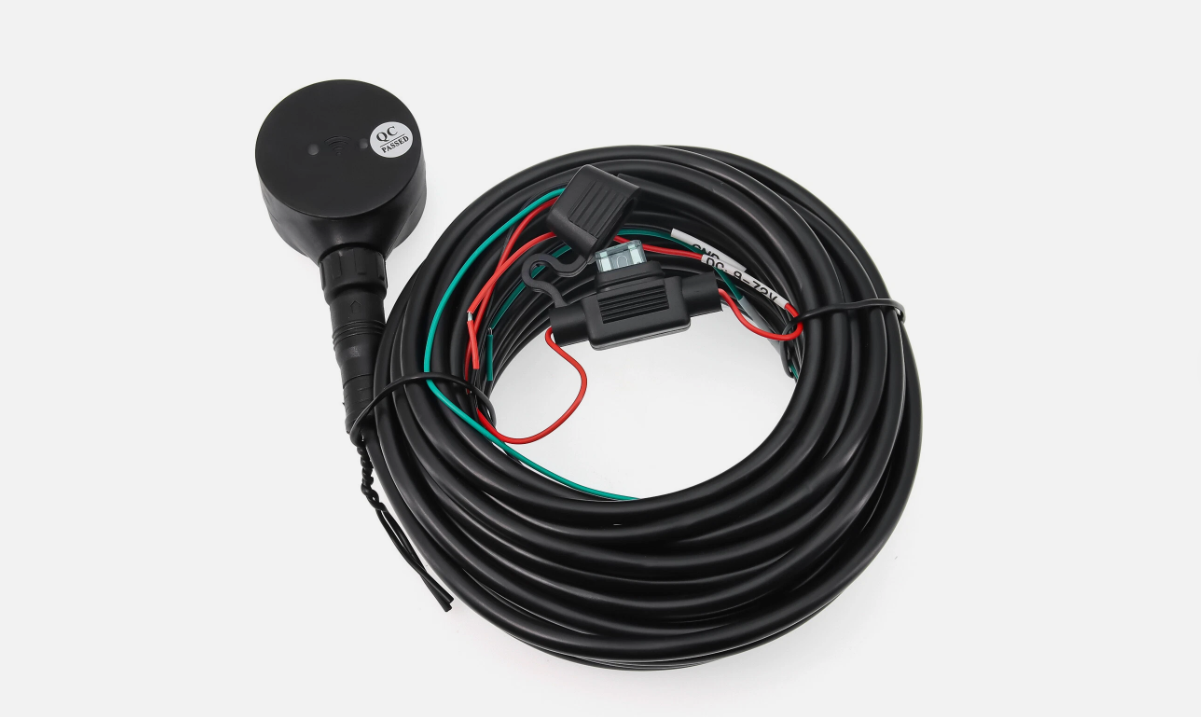

Extension Cable |
9 meters |
|
Working Temperature |
-40~85℃ （@1 ATM） |
|
Working Humid |
5~99% |
|
Explosion-proof Class |
Exd II CT5 |
|
Waterproof |
IP68 |
